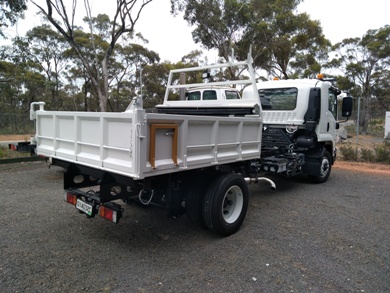

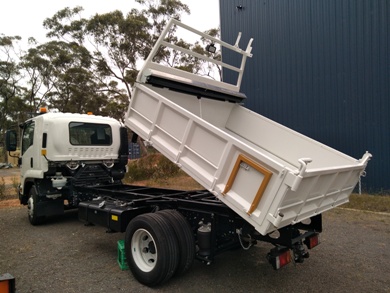

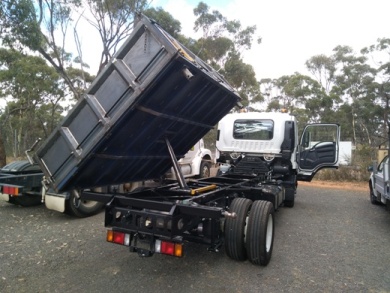

3-Way Tipper Body

Standard Specifications

• Length 6000 Max.

• Width 2490mm max.

• Rear Tipping angle 48 degrees

• Side Tipping angle 42 degrees

• Tray construction, G350 plate or Hardox

• Heavy duty RHS Sub-frame

• Headboard at front of body

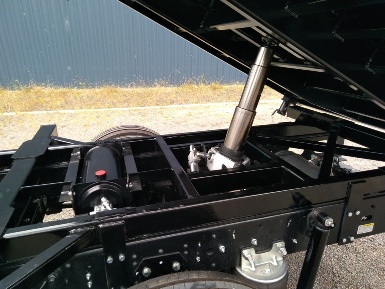

• Hydraulic power via PTO

• Hydraulic cylinders fitted with burst protection valve

• Oil tank fitted with filler-breather cap

• PTO Controls mounted in CAB

• Two-way rear door

• Tub primed coated and 2-pak painted, Sub-frame is painted black

Options extra

• Rollover tarp

• Side or rear step

• Tool box, Water tank,  etc.

• Signage

Delivery

All tipper bodies are delivered mounted to the truck chassis and fully tested
